Distance Measurement Sensor

GP2Y0A21YK is General Purpose Type Distance Measuring Sensors from Sharp. Sharp Infrared (IR) radiation Distance Measuring Sensor use Infrared signal to measure object distance from 10 to 80 cm with analog output.







Features

• Less influence on the color of reflective objects, reflectivity
• Line-up of distance output/distance judgement type
  Distance output type (analog voltage) : GP2Y0A21YK
  Detecting distance : 10 to 80cm
  Distance judgement type : GP2Y0D21YK
  Judgement distance : 24cm
  Adjustable within the range of 10 to 80cm [Optionally available])
• External control circuit is unnecessary
• Low cost

Applications

1. TVs
2. Personal computers
3. Cars
4. Copiers
5. Robots

The output of this sensor is analog therefore it need Analog to Digital Converter (ADC) to interface the 8051. I use ads7841 as ADC.

The graph of Analog voltage output versus distance to reflective object are shown in Fig.1. When I plot Analog voltage output versus inverse number distance, I found the linear relation shown in Fig.2.

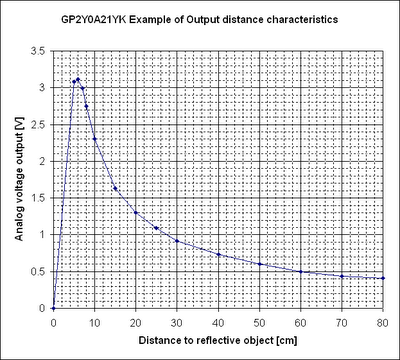

Fig. 1 Analog voltage output (V) versus distance to reflective object (cm).

Fig. 2 Analog voltage output (V) versus inverse number distance (1/cm)

The linear equation is y = 20.99x + 0.19, where y is voltage output and x invert distance. Notice that the voltage output I can trust are about 0.4 to 2.8 V.

This is an example code how to interface the distance sensor to 8051. I use SDCC as C Compiler.

#include <8051.h>
 #include "ads7841.h"
void main()
 {
     float x,y; // Distance and Analog voltage output
     y = analog(0); // Read volt out if the sensor connect to channel 0 of ADS7841
     y = 0.00122*y; // Convert BCD to DEC by multiply voltage by 5/4096
     if ( (y > 0.4) && (y < 2.8) ) {
        x = (y-0.19)/20.99; // Solve the linear equation
        x = 1/x; // Inverse back get distance in cm.
    }
 }

Source:
test_irsensor.c
characteristic.txt (For plot with Spreadsheet)
